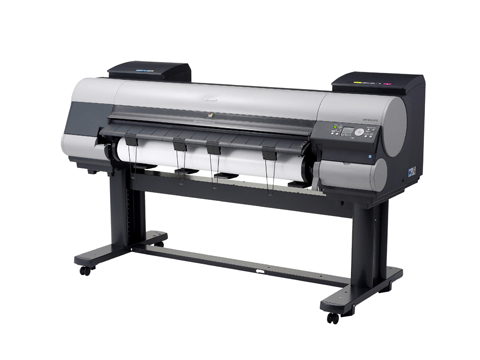

LFP iPF8000S (44″-111cm) 8 col

LFP iPF8000S (44″-111cm) 8 col

CIJENA: na upit

  • Sadrži dvojno dizajniranu ispisnu glavu
  • 8-bojni LUCIA pigmentni tintni sustav sa brzim ispisom koji traje do 100 godina
  • Ekonomičan mod za niže troškove korištenja



SPECIFIKACIJE
Klasa 44-inča
Vrsta Tinte LUCIA Pigment ink, 8 colours (MBK, BK, PC, C, PM, M, Y, GY)
Maksimalna rezolucija ispisa 2,400 x 1,200 tpi
Brzina ispisa (A0 Roll, Full Colour Image)
Običan papir – 1:44 (Fast)
Coated papir – 3:10 (Standard)Foto sjajni papir – 4:50 (Standard)
Dimenzije, Težina (Net)
Š X D X V
Net:
Glavna jedinica sa postoljem pisača i košarom 1,893 (Š) x 975 (D) x 1,144 (V) mm ; Težina: oko. 140kg
Upakirano:
Glavna jedinica sa postoljem pisača i košarom u jednom pakiranju (Paleta uključena), 2,080 (Š) x 1,060 (D) x 1,242 (V) mm; Težina: otpr. 217 kg
Glavna jedinica (Paleta uključena), 2,080 (Š) x 1,060 (D) x 862 (V) mm; Težina: otpr. 167 kg
Postolje i košara: 1,795 (Š) x 863 (D) x 363 (V) mm; Težina: otpr. 43 kg



Strujno napajanje Input power – AC 100 – 240 V (50/60 Hz)
Power consumption – 190 W or less
Standby power consumption (At the low power mode)
100 V – 120 V – 5 W or less (when IEEE1394 is mounted, 10 W or less)
220 V – 240 V – 6 W or less (when IEEE1394 is mounted, 11 W or less)
Power off (standby) – 1 W or less (In compliance with Executive Order of the President of the United States of America)



Radno okruženje Temperatura: 15 – 30°C, Vlaga: 10 – 80 % (Bez kondenzacije)
Razina buke Acoustic pressure – Operation: 50 dB (A) or less, Standby: 35 dB (A) or less
Acoustic power – Operation: 6.6 Bels or less
Zaslon sa operacijama Large LCD: 160 x 128 dots, Key x 12, LED x 6
Tvrdi disk 8-GB
Jezici na zaslonu sa operacijama US-English, Japanese
Jezici na LCD US-English, French, German, Italian, Spanish, Russian, Chinese (simplified), Korean, Japanese (Kanji)
Jezik pisača GARO
Sučelje USB2.0 Hi-Speed
Type: Built-in
Mode: Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer
Connector type: Series B (4 pins)
Ethernet Type: Built-in
Standard: IEEE 802.3 10base-T; IEEE 802.3u 100base-TX / Auto-Negotiation; IEEE 802.3 x Full Duplex
Protokol IPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
IEEE1394 (Option)
Type: Slot card type
Standard: IEEE1394 – 1995, P1394a, Half duplex,
Data/Strb differential serial
Data-transfer time: 100 / 200 / 400 Mbit/sec.
Connector type: In compliance with IEEE1394 – 1995, 6 pins, No power supply
Operating Systems supported
Windows 2000, XP, Server 2003, Vista / Macintosh OS 9, OS X
Propisi CE Mark, CB Certification, TUV (GS), Gost-R, UL, FCC class B



GLAVA ZA ISPIS
Model
Konfiguracija glave
PF-03
6 colors integrated type (6 chips per print head x 2 print heads)
Vrsta Bubble-jet on demand
Broj mlaznica Mlaznica: 30,720
2,560 mlaznica po boji
12 boja ukupno
Razmak mlaznica 1,200 dpi x 2



Veličina kapljice 4 pikolitra po boji
SPREMNIK TINTE
Model Model: PFI-301 (330ml) / PFI-701 (700ml)
MBK, BK, PC, C, PM, M, Y, GY
RUKOVANJE MEDIJIMA
Rola papira One Roll, Front-loading, Front Output



Rezani listovi Front-loading, Front Output (Manual feed using media locking lever)
Vrsta medija Roll paper: Standard Paper, Matt Coated Paper, Extra Matt Coated Paper, Opaque Paper, High Resolution Graphic Paper, High Resolution Barrier Paper, Photo Paper High Gloss, Photo Paper Satin, Photo Paper Semi Matt, Photo Paper Pearl, Photo Realistic Paper, Heavy Weight Glossy Photo Paper, Heavy Weight Satin Photo Paper, Commercial Proofing Paper, Commercial RC Proofing, Glossy Proofing Paper, Semi glossy Proofing Paper, Art Paper Extra Smooth, Prem Art Paper Embossed, Prem Art Paper Smooth, Scrim Banner, Backlit Film, Universal Opaque Film, Roll-Up Film, Water Resistant Art Canvas, Flame-Resistant Cloth, Adhesive Matt Stretch Vinyl, Adhesive Matt Vinyl
Veličina medija Roll paper (width) – ISO: A3, A2, A1, A0, JIS: B2, B0, ARCH: 24″, 30″, 36″ Others: 10″, 14″, 16″, 17″, 42″, 44″
Cut sheet – ISO: A4, A3, A3+, A2, A1, A0, B4, B3, B2, B1, B0, DIN: C4, C3, C2, C1, C0, JIS: B4, B3, B2, B1, B0, ANSI: 8.5 x 11″, 8.5 x 14″, 11 x 17″, 13 x 19″, 17 x 22″, 22 x 34″, 28 x 40″, 34 x 44″, ARCH: 9 x 12″, 12 x 18″, 18 x 24″, 24 x 36″, 26 x 38″, 27 x 39″, 30 x 42″, 36 x 48″, Photo: 20 x 24″, 18 x 22″, 14 x 17″, 12 x 16″, 10 x 12″, 10 x 15″, 8 x 10″, 16 x 20″ (US Photo size), Poster: 20 x 30″, 30 x 40″, 42 x 60″, 44 x 62″, 300 x 900 mm, Others: 13 x 22″
Debljina medija Roll paper & Cut sheet: 0.07 – 0.8 mm
Maksimalan vanjski promjer role papira 150.0 mm
Veličina jezgre papira Unutarnji promjer jezgre role: 2″ / 3″ (Opcija)
Širina medija Roll paper: 254 – 1,118 mm
Cut sheet: 203.2 – 1,117.6 mm
Minimalna duljina ispisnog papira 203.2 mm
Maksimalna duljina ispisnog papira Roll paper: 18 m (Varies according to the OS and application)
Cut sheet: 1.6 m
Margina (Vrh, Dno, Strane) Recommended area:
Roll paper: Top: 20 mm, Bottom: 5 mm, Side: 7 mm
Cut sheet: Top: 20 mm, Bottom: 23 mm, Side: 7 mm
Printable area:
Roll paper: Top: 5 mm, Bottom: 5 mm, Side: 5 mm
Roll paper (borderless print): Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet: Top: 5 mm, Bottom: 23 mm, Side: 5 mm
Širina medija za ispis od ruba do ruba 515 mm (JIS B2), 1,030 mm (JIS B0), 594 mm (ISO A1),
841 mm (ISO A0), 10″, 14″, 16″, 24″, 36″, 42″
OPCIJA
Jedinica podizanja medija TU-06
Set držača role (2-inch core spindle) – RH2-42
Set držača role (3-inch core spindle) – RH3-42
IEEE1394 ploča proširenja EB-05



POTROŠNI DIJELOVI
Spremnik tinte PFI-301(330 ml), PFI-701(700 ml); MBK, BK, PC, C, PM, M, Y, R, G, B, GY, PGY
Glava ispisa PF-03
Oštrica rezača CT-06
Spremnik održavanja MC-08
